Neodymium Magnets (NdFeB Magnets)

Permanent magnet with high magnetic properties

Neodymium Magnets (NdFeB Magnets)
Request A Quote
Prepare to witness the extraordinary as NGYC takes magnet production to new heights with our complex and high-performance NdFeB magnets.

At NGYC, we specialize in producing complex and high-performance NdFeB magnets with unique shapes and orientations. Our products boast high residual flux density, maximum energy product, and exceptional cost-effectiveness. While NdFeB magnets offer outstanding magnetic properties, they are prone to corrosion and require plating. In addition, they have a low Curie temperature and high temperature coefficient.

Applications
  • Automotive Industry: Drive motors, generators, measurement instruments, electric motors for hybrid and electric vehicles, spindles, and stepper motors.
  • Medical Industry: Magnetic resonance imaging (MRI), magnetic levitation, medical pumps, electronic medical devices, and more.
  • Industrial Machinery: Waveguides, generators, measurement instruments, magnetic levitation, magnetic drives, magnetic resonance, and various other fields.
Technical Data
Grade Remanence Coercivity Intrinsic Coercivity Max. Energy Product Max. Working Temperature
Br Hcb Hcj (BH)max TW
mT KGs KA/m KOe KA/m KOe KJ/m3 MGOe ℃
N35
 1170-1220 11.7-12.2 ≥868 ≥10.9 ≥955 ≥12 263-287 33-36 ≤80℃
N38
 1220-1250 12.2-12.5 ≥899 ≥11.3 ≥955 ≥12 287-310 36-39 ≤80℃
N40
 1250-1280 12.5-12.8 ≥907 ≥11.4 ≥955 ≥12 302-326 38-41 ≤80℃
N42
 1280-1320 12.8-13.2 ≥915 ≥11.5 ≥955 ≥12 318-342 40-43 ≤80℃
N45
 1320-1380 13.2-13.8 ≥923 ≥11.6 ≥955 ≥12 342-366 43-46 ≤80℃
N48
 1380-1420 13.8-14.2 ≥923 ≥11.6 ≥955 ≥12 366-390 46-49 ≤80℃
N50
 1400-1450 14.0-14.5 ≥955 ≥12 ≥876 ≥11 392-406 48-51 ≤80℃
N52
 1430-1480 14.2-14.8 ≥876 ≥11 ≥876 ≥11 398-422 50-53 ≤80℃
N54
 1450-1500 14.6-15.2 ≥876 ≥11 ≥876 ≥11 414-438 52-55 ≤70℃
35M
 1170-1220 11.7-12.2 ≥868 ≥10.9 ≥1114 ≥14 263-287 33-36 ≤100℃
38M
 1220-1250 12.2-12.5 ≥899 ≥11.3 ≥1114 ≥14 287-310 36-39 ≤100℃
40M
 1250-1280 12.5-12.8 ≥923 ≥11.6 ≥1114 ≥14 302-326 38-41 ≤100℃
42M
 1280-1320 12.8-13.2 ≥955 ≥12.0 ≥1114 ≥14 318-342 40-43 ≤100℃
45M
 1320-1380 13.2-13.8 ≥995 ≥12.5 ≥1114 ≥14 342-366 43-46 ≤100℃
48M
 1370-1430 13.7-14.2 ≥1027 ≥12.9 ≥1114 ≥14 366-390 46-49 ≤100℃
50M
 1400-1450 14.0-14.5 ≥1035 ≥13.0 ≥1114 ≥14 382-406 48-51 ≤100℃
52M
 1430-1480 14.3-14.8 ≥1043 ≥13.1 ≥1114 ≥14 398-422 50-53 ≤100℃
35H
 1170-1220 11.7-12.2 ≥868 ≥10.9 ≥1353 ≥17 263-287 33-36 ≤120℃
38H
 1220-1250 12.2-12.5 ≥899 ≥11.3 ≥1353 ≥17 287-310 36-39 ≤120℃
40H
 1250-1280 12.5-12.8 ≥923 ≥11.6 ≥1353 ≥17 302-326 38-41 ≤120℃
42H
 1280-1320 12.8-13.2 ≥955 ≥12.0 ≥1353 ≥17 318-342 40-43 ≤120℃
45H
 1320-1370 13.2-13.7 ≥973 ≥12.3 ≥1353 ≥17 342-366 43-46 ≤120℃
48H
 1370-1420 13.7-14.2 ≥995 ≥12.5 ≥1353 ≥17 366-390 46-49 ≤120℃
50H
 1400-1450 14.0-14.5 ≥1003 ≥12.6 ≥1353 ≥17 382-406 48-51 ≤150℃
35SH
 1170-1220 11.7-12.2 ≥876 ≥11.0 ≥1592 ≥20 263-287 33-36 ≤150℃
38SH
 1220-1250 12.2-12.5 ≥907 ≥11.4 ≥1592 ≥20 287-310 36-39 ≤150℃
40SH
 1250-1280 12.5-12.8 ≥939 ≥11.8 ≥1592 ≥20 302-326 38-41 ≤150℃
42SH
 1280-1320 12.8-13.2 ≥963 ≥12.1 ≥1592 ≥20 318-342 40-43 ≤150℃
45SH
 1320-1380 13.2-13.8 ≥979 ≥12.3 ≥1592 ≥20 342-366 43-46 ≤150℃
48SH
 1370-1430 13.7-14.3 ≥1011 ≥12.7 ≥1592 ≥20 366-390 46-49 ≤150℃
28UH
 1040-1080 10.4-10.8 ≥796 ≥9.6 ≥1990 ≥25 207-231 26-29 ≤180℃
30UH
 1080-1130 10.8-11.3 ≥812 ≥10.2 ≥1990 ≥25 223-247 28-31 ≤180℃
33UH
 1130-1170 11.3-11.7 ≥852 ≥10.7 ≥1990 ≥25 247-271 31-34 ≤180℃
35UH
 1170-1220 11.7-12.2 ≥860 ≥10.8 ≥1990 ≥25 263-287 33-36 ≤180℃
38UH
 1220-1250 12.2-12.5 ≥899 ≥11.3 ≥1990 ≥25 287-310 36-39 ≤180℃
40UH
 1250-1280 12.5-12.8 ≥939 ≥11.8 ≥1990 ≥25 302-326 38-41 ≤180℃
42UH
 1280-1320 12.8-13.2 ≥963 ≥12.1 ≥1990 ≥25 318-342 40-43 ≤180℃
45UH
 1320-1380 13.2-13.8 ≥979 ≥12.3 ≥1910 ≥24 342-366 43-46 ≤180℃
28EH
 1040-1080 10.4-10.8 ≥780 ≥9.8 ≥2388 ≥30 207-231 26-29 ≤200℃
30EH
 1080-1130 10.8-11.3 ≥812 ≥10.2 ≥2388 ≥30 223-247 28-31 ≤200℃
33EH
 1130-1170 11.3-11.7 ≥836 ≥10.5 ≥2388 ≥30 247-271 31-34 ≤200℃
35EH
 1170-1220 11.7-12.2 ≥876 ≥11.0 ≥2388 ≥30 263-287 33-36 ≤200℃
38EH
 1220-1250 12.0-12.5 ≥899 ≥11.3 ≥2388 ≥30 287-310 36-39 ≤200℃
40EH
 1250-1280 12.5-12.8 ≥923 ≥11.6 ≥2388 ≥30 302-326 38-41 ≤200℃
42EH
 1280-1320 12.8-13.2 ≥931 ≥11.7 ≥2388 ≥30 318-342 40-43 ≤200℃
28AH
 1040-1080 10.4-10.8 ≥787 ≥9.9 ≥2624 ≥33 207-231 26-29 ≤230℃
30AH
 1080-1130 10.8-11.3 ≥819 ≥10.3 ≥2624 ≥33 223-247 28-31 ≤230℃
33AH
 1130-1170 11.3-11.7 ≥843 ≥10.6 ≥2624 ≥33 247-271 31-34 ≤230℃
35AH
 1170-1220 11.7-12.2 ≥876 ≥11.0 ≥2624 ≥33 263-287 33-36 ≤230℃
38AH
 1220-1250 12.2-12.5 ≥899 ≥11.3 ≥2624 ≥33 287-310 36-39 ≤230℃
40AH
 1250-1280 12.5-12.8 ≥923 ≥11.6 ≥2624 ≥33 302-326 38-41 ≤230℃
High Quality Magnetic Products for Industrial Application
Automotive Automotive
Railway Railway

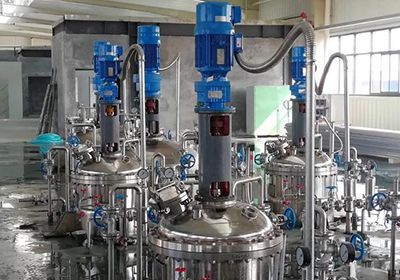

Mechanical Engineering Mechanical Engineering

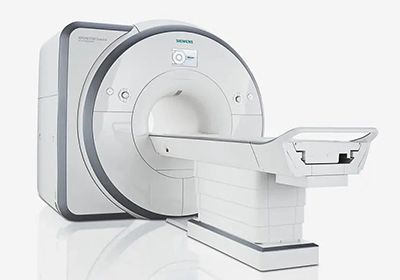

Medical Medical
